Mixed Practice Ultrasound Scanner

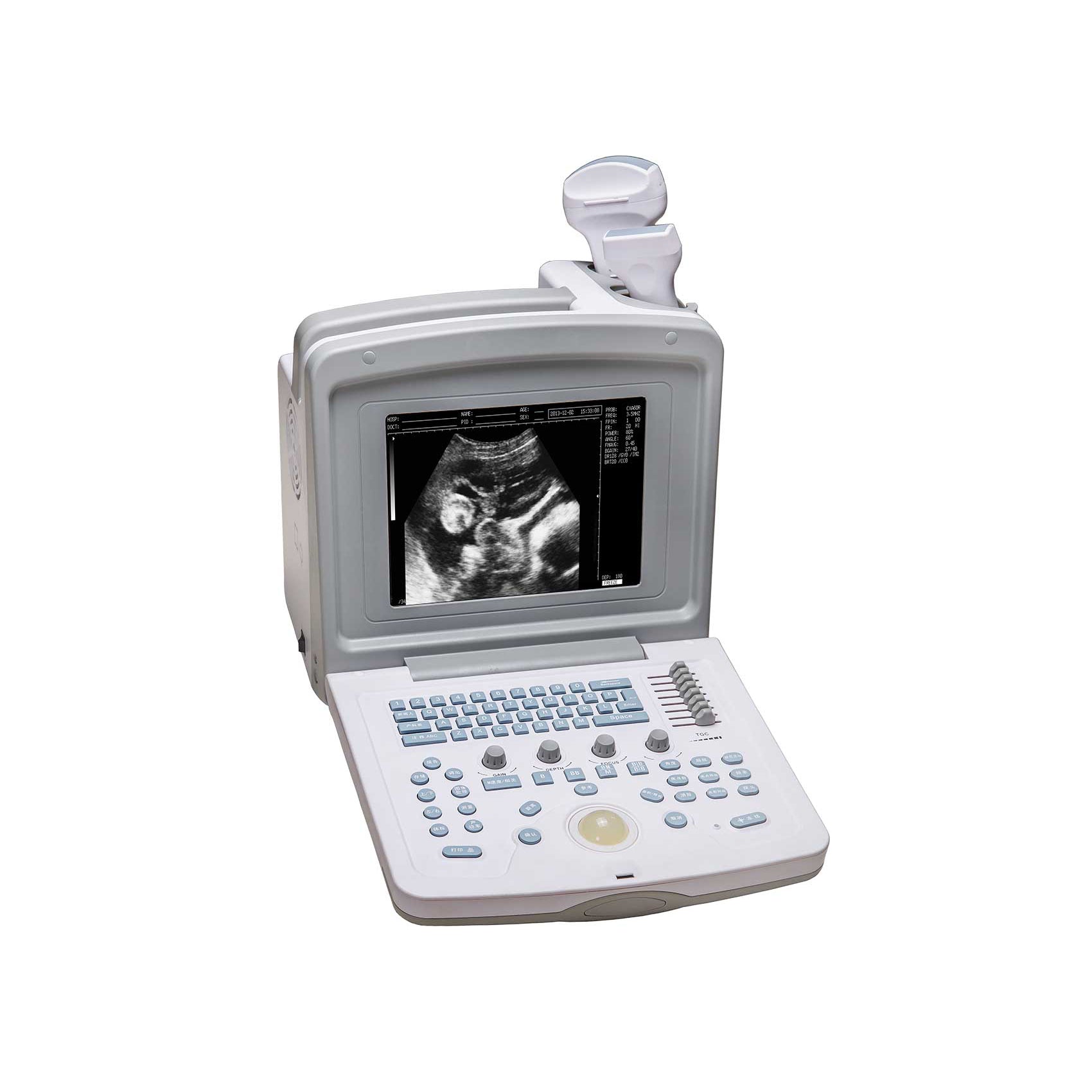

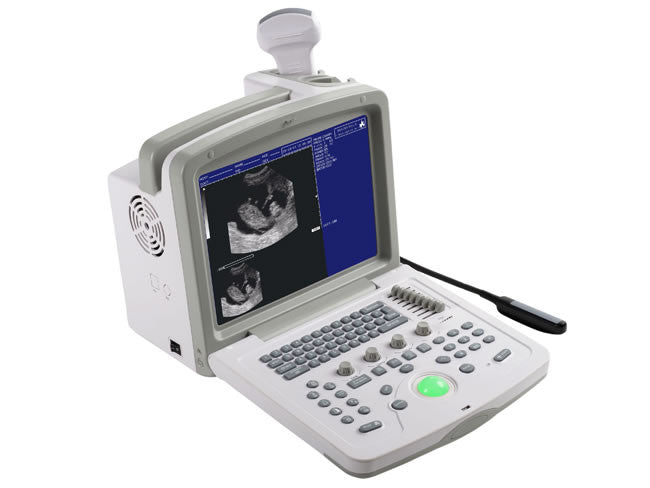

The WED-180V digital ultrasound scanner features advanced ultrasonic frame forming technology, producing excellent image quality and processing real time images to ensure the proper diagnosis. This ultrasound is made for veterinary examinations on cat, dog, swine, sheep, and equine. The WED-180V is compact and lightweight, allowing for easy use. With two probe connectors with automatic identification and scanning angle adjustment, the WED-180V will provide quick results and better care.

Features

• Lightweight: 6.1kg
• 12.1” TFT color LCD (1024*768)
• THI (tissue harmonie imaging)
• Automatic report generation (Normal/OB)
• Probe automatic identification (2 probe connectors)
• Scanning angle adjustment (Convex)
• Pseudo color: 3 difference

Technical Specifications

• Scanning mode: Convex/Linear/Micro-convex
• Display modes: B,B+B,B+M,M,4B,B+2B,6B,12B
• Scanning depth: 40mm-240mm
• Gray scales: 256
• Cine-loop: ≥500 frame
• Image permanent storage: 64 frames
• Image conversion: up/down, left/right, black/white
• pseudo color: 3
• Local zoom: 2 times both in real-time and frozen
• Measurement: distance, circumference, area, volume, EF rate, heart rate
• OB measurments: EDD, GA, FW ( BPD, GS, CRL, FL, HC, AC )
• Port: PAL-D, USB 2.0, RS-232
• Monitor: 12.1 inch color LCD (brightness/contrast adjustable)
• Body marks: 40
• Comment: date&time, name, pid,sex, age, doctor, hospital, annotation (whole screen comment input)
• Power supply: AC 100V~240V, 50/60Hz
• Standard Probe configuration: 3.5MHz Convex

Options

• 6.5 MHz Vet Rectal
• 7.5MHz Linear
• 5.0MHz Micro-Convex
• Video Printer
• Biopsy Bracket
• Cart
