Demo model was used for a couple of hours for photography.

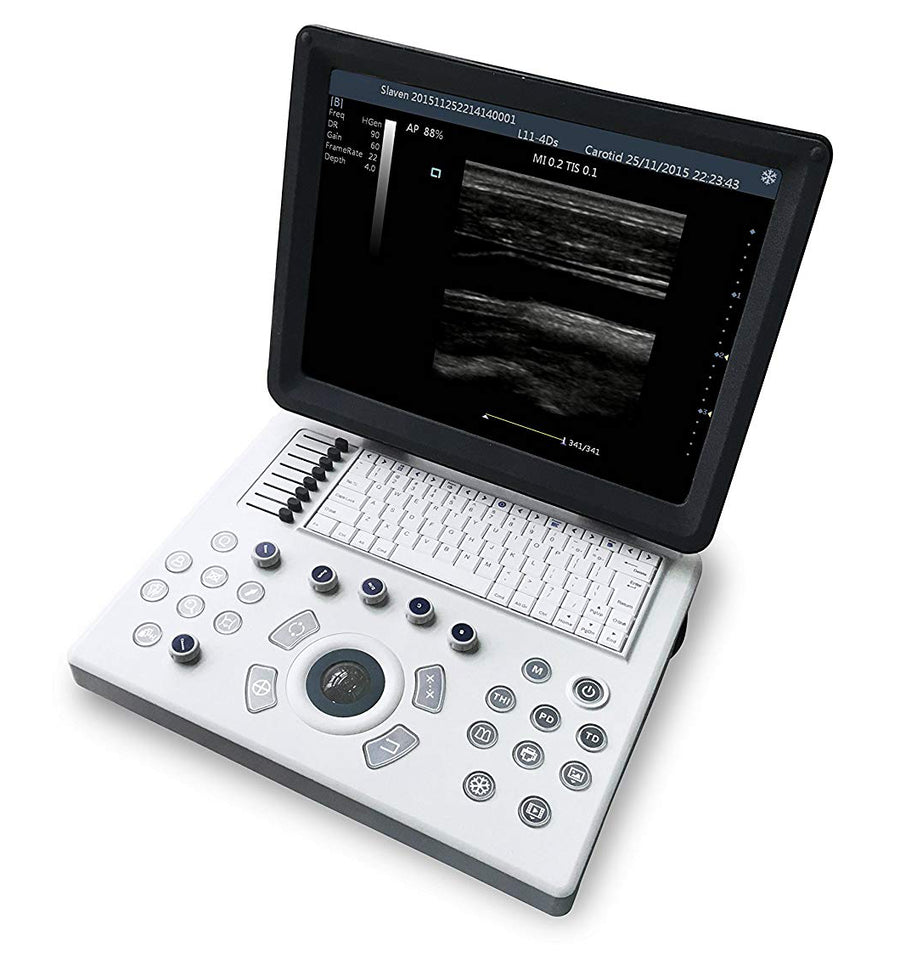

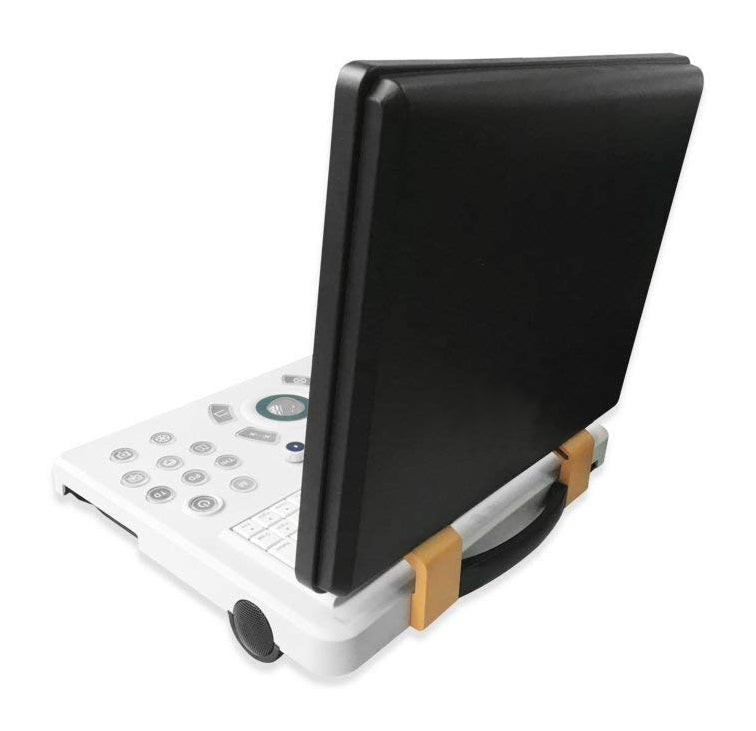

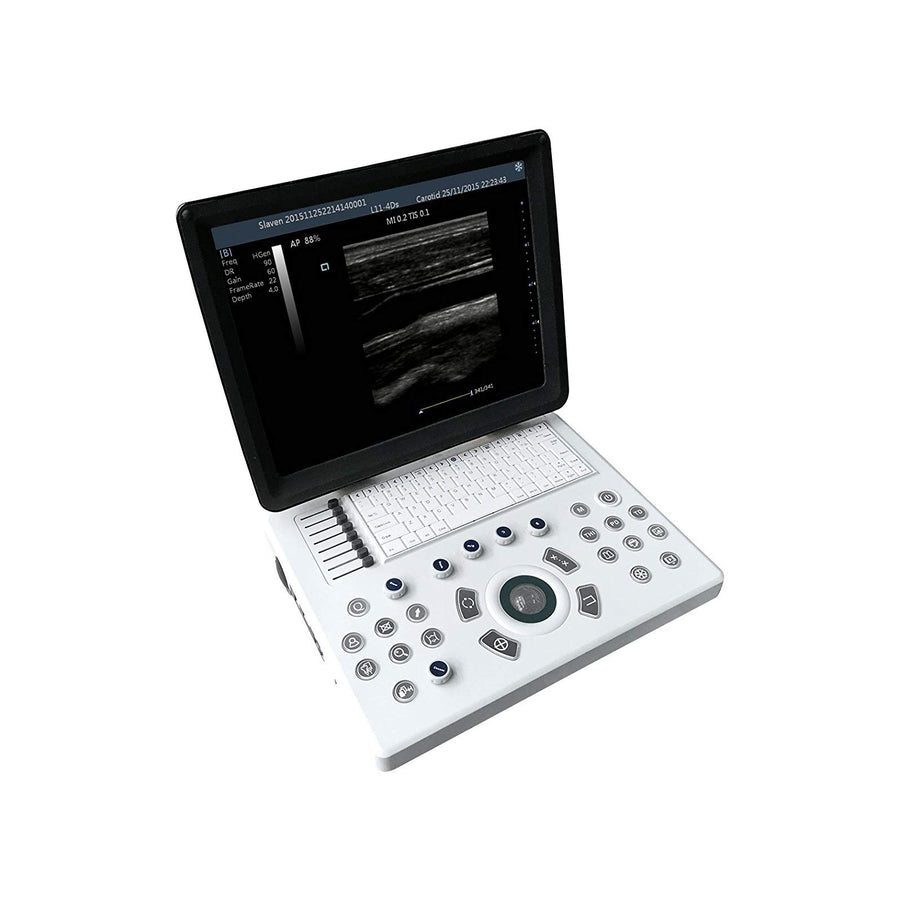

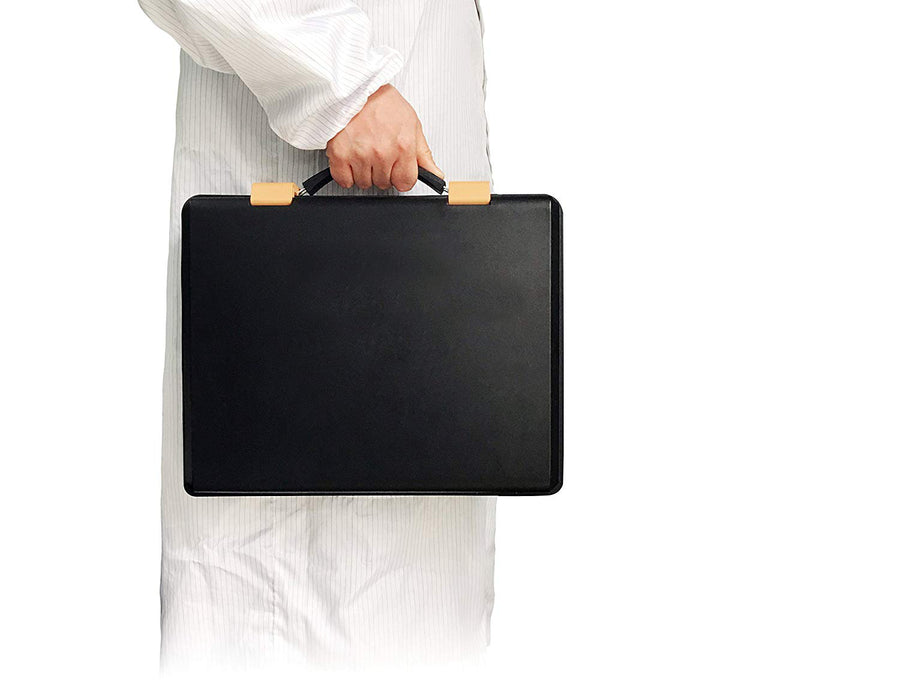

The iuStar100Vet BW is a lightweight, hand-carried black and white scanner ideal for work with small animals, equine or mixed practice.  The only portable system in the globe that can connect 3 probes at one time.  It offers advanced UniView (speckle reduction) and UniCT (spatial compounding) in  the standard configuration.  The screen on the system is 15 inch and can be angled up or down, this is a really useful function when scanning at different heights.

System Overview

Application: Abdomen, Obstetrics, Gynecology, Cardiology, Small parts, Urology, Vascular, Pediatrics, Nerve

Transducer types

• Curved array transducer

• Linear array transducer


Imaging modes

• B-Mode

• (Tissue Harmonic Imaging & Pulse Inversion Harmonic Imaging)

• M-Mode

• TSI (Tissue Specific Imaging)


Standard features

• B-Mode

• (Tissue Harmonic Imaging & Pulse Inversion Harmonic Imaging)

• M-Mode

• TSI (Tissue Specific Imaging)

• B,M,2B,B/M,4B

• UniCTTM(Spatial Compound Imaging)

• UniViewTM(Adaptive Speckle Reduction)

• iuScanTM (Auto Optimization)

• Zoom

• Expand Mode

• 2 active probe ports

• 32GB hard drive

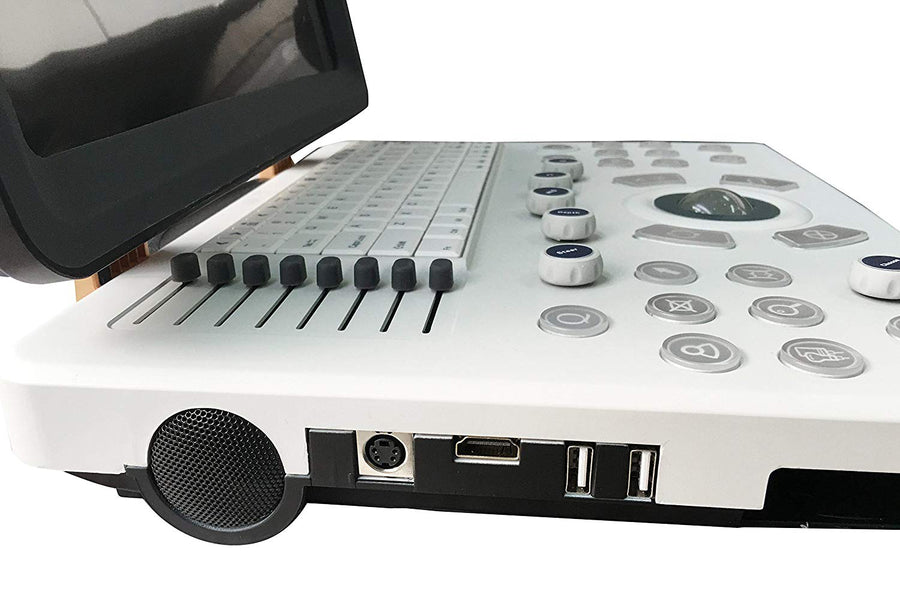

• 2 USB ports

• Biopsy Guide


Optional features

• DICOM

• Video & PC printer

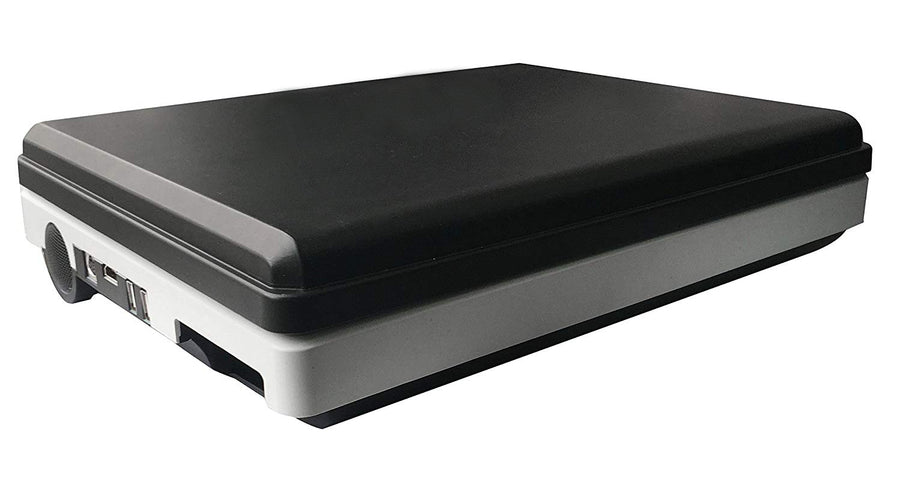

Physical Specification

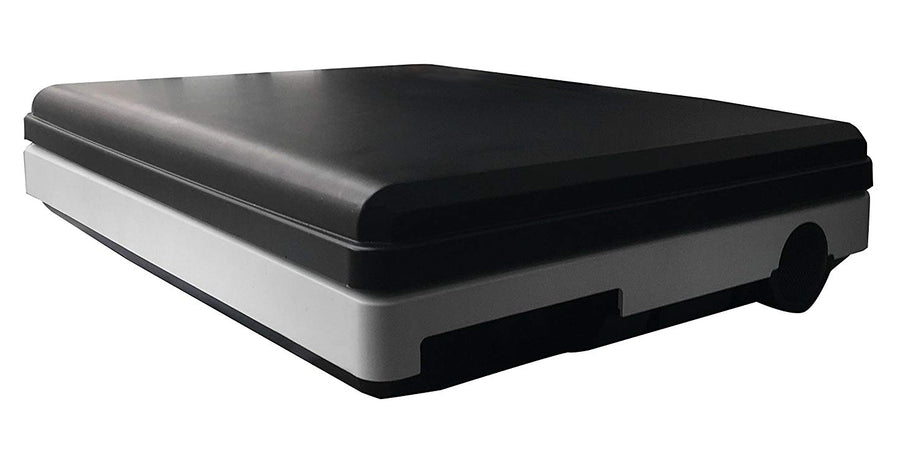

Dimension and weight

• Height: 90mm

• Width: 360mm

• Depth: 360mm

• Weight: Approx.4.5kg (no peripherals)


Monitor

• 15-inch high resolution LED monitor

• Resolution: 1024 ×768


Audio speakers

• Stereo audio speakers

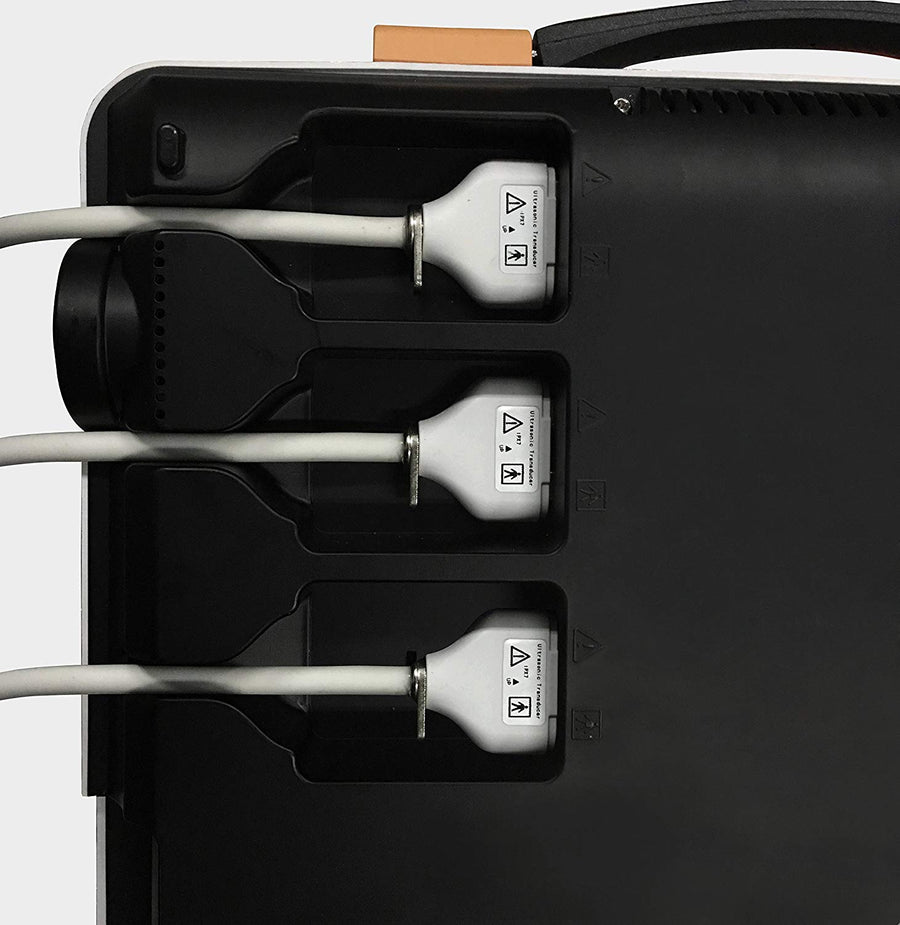

Probe port and holder

• Probe ports: 3 active ports

• Probe holder: 3 probe holder


Electrical Power

• Voltage: 100 - 240V~

• Frequency: 50/60 Hz

• Power consumption: Approx. 100VA

• Circuit breaker: 100 – 240V ~, 2.2A

• Built-in Lithium battery (optional)


Operating Environment

• Ambient temperature: 5 – 40 °C

• Relative humidity: 35% – 75% (no condensation)

• Atmospheric pressure: 700hPa – 1060hPa


Storage & Transportation Environment

• Ambient temperature:  -5 – 40 °C

• Relative humidity: 20% – 80% (no condensation)

• Atmospheric pressure: 700hPa – 1060hPa


User Interface

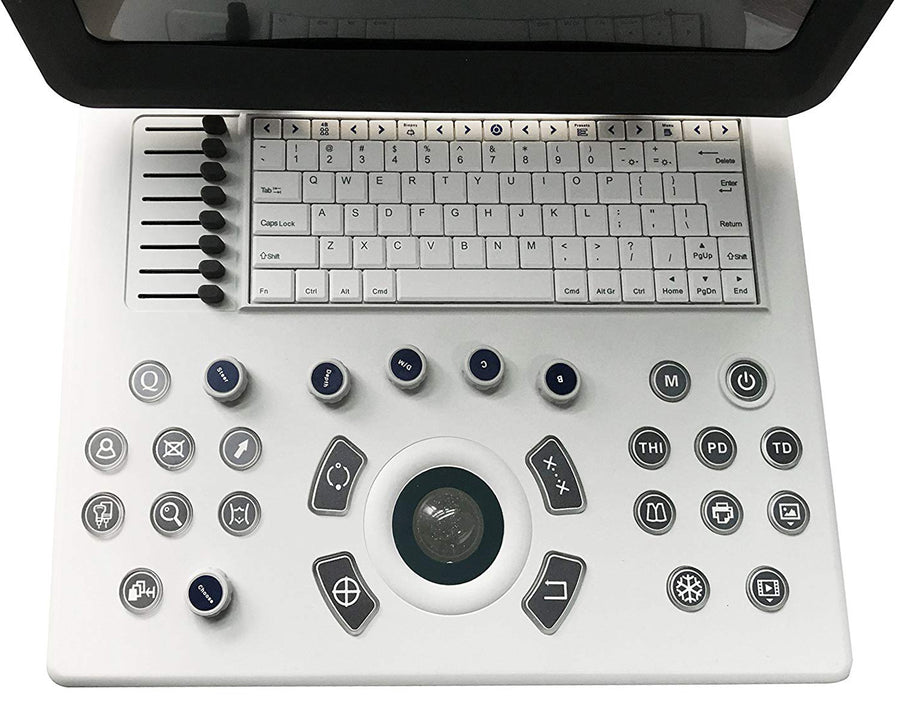

Control panel

• User-centric control panel

• Backlit keys ensure accurate work in the dark room

• 8-segment TGC control

• Full-sized, QWERTY keyboard for text input, function keys and system programming


System boot-up

• Boot-up from complete shut-down in less than 50 sec

• Shut-down in less than 3 sec


Comments

• Supports text input and arrow

• Adjustable text size


Body mark

• More than 110 body marks for versatile application


Screen information

Common info:

• Hospital name

• Exam date

• Exam time

• Thermal and Mechanical Acoustic Output Indices

• Gender, Age, ID, Name

• Focus position

• Thumbnail

• Imaging parameters


Imaging Parameters

Overview

• Digital Broadband beamforming

• 16 channels

• Image depth up to 31 cm (exam and transducer specific)

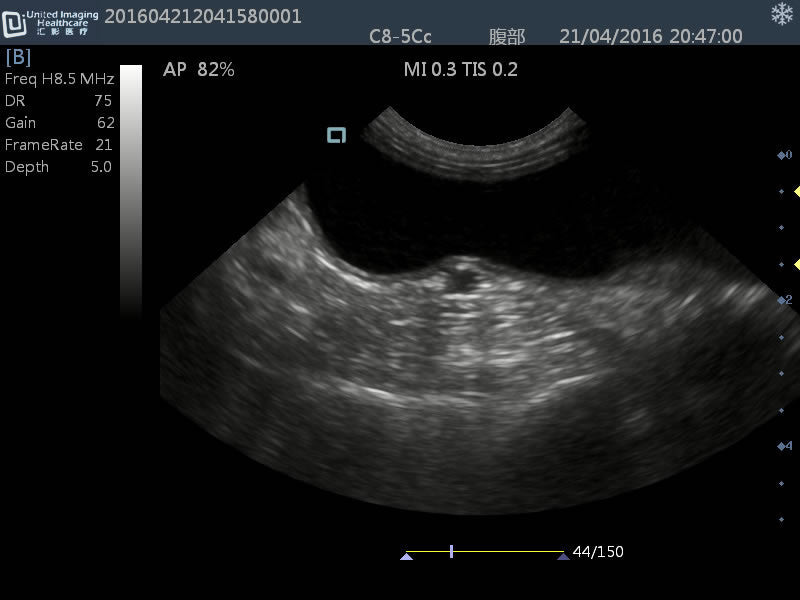

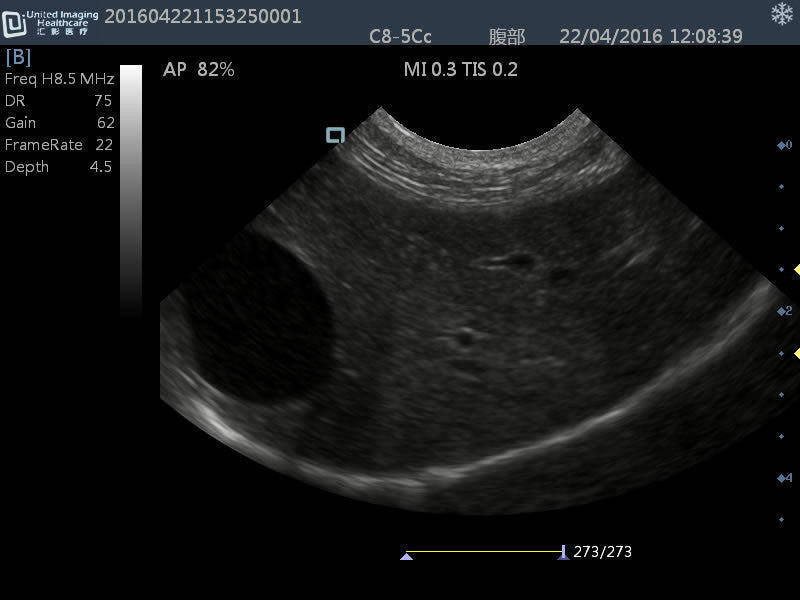

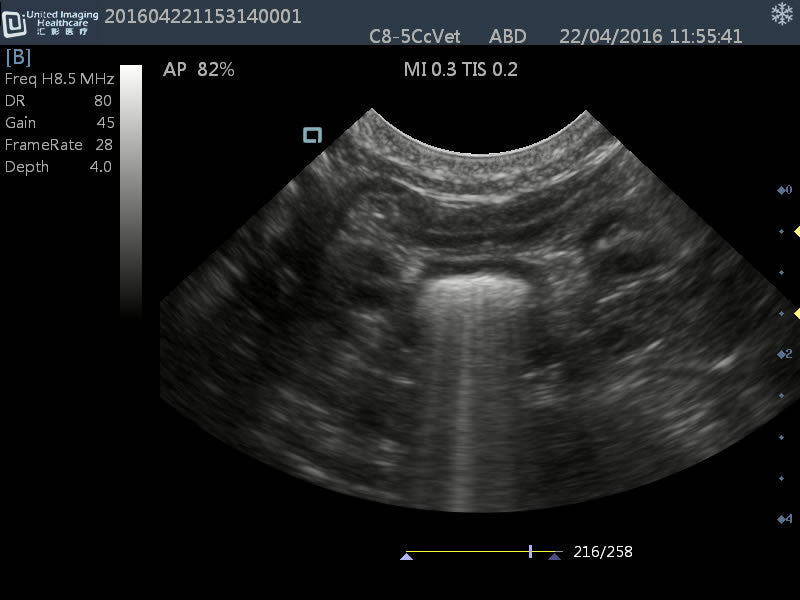

B-mode

• Depth 31cm

• Zoom Freeze status or real time

• TGC 8-segment TGC control

• Dynamic range 30-120

• Gain

• Persistence 4 levels (exam and transducer specific)

• L/R flip and U/D flip

• Gray Map 6 levels (exam and transducer specific)

• Frequency

• Colorize map

• Acoustic Output Indices

• UniviewTM
• Adaptive Speckle Reduction

• iuScanTM
• Auto Optimization

• UniCTTM: Spatial compound imaging

• Focus number: Adjustable

• Focus position: Adjustable

• Focus spacing: Adjustable

• Display formats: B, 2B, 4B

• TSI: General/Fat/Fluid/Muscle

• Pulse Inversion THI

• Available on all types of transducer


Utilizing pulse inversion technologies to enhance high-resolution harmonic signals, iuStar100BW provides increased contrast and axial resolution, clearer boundaries and better visualization of structures
