Equine & Bovine Reproduction Ultrasound

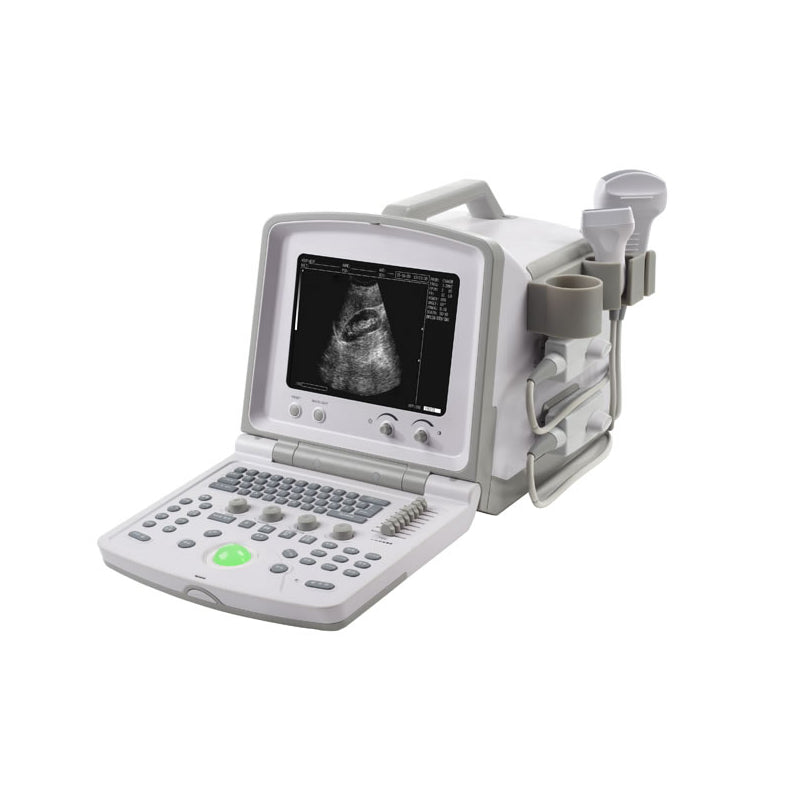

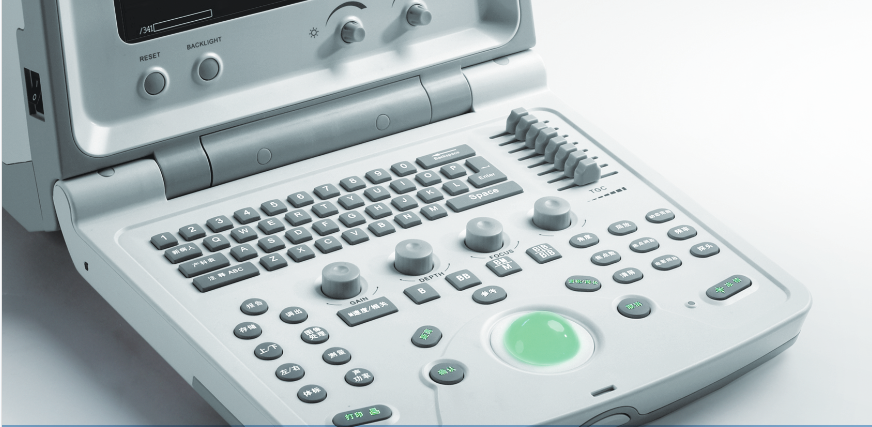

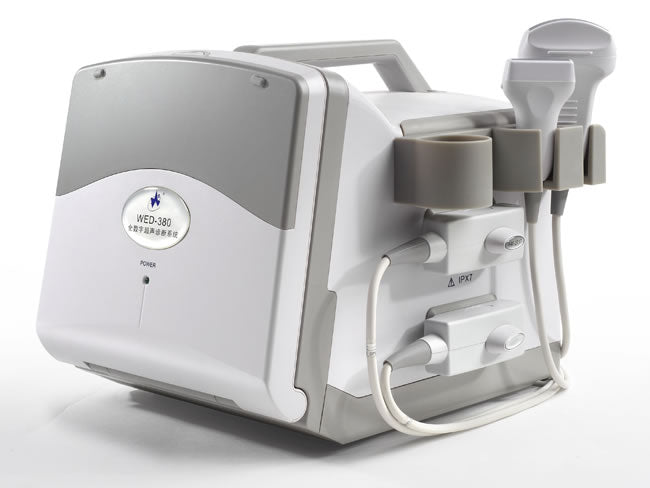

WED-380V is one of the best selling portable ultrasounds for equine and bovine reproduction. It features good image quality, reliability, and an extremely user friendly back-lit keyboard with 8 segment TCG adjustments. The WED-380V ultrasound is also a good choice for pregnancy checking of farm animals using a convex probe. This model compares with other popular ultrasounds such as: Chison 8300vet, Landwind C40V, EMP-2100V and other ultrasounds with 32 channel technology. The advantage of WED-380 is its low price; it has the lowest price among the models of its class.

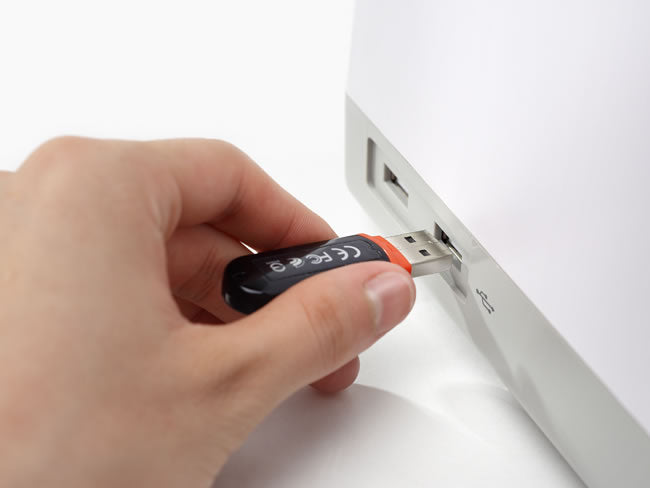

Standard configuration is a veterinary rectal linear probe with 96 elements and a 65mm lens. The probe cord is 7 feet long (2.5 meters), frequency is standard at 6.5/7.5/8.5MHz. WED-380V performs full digital beam forming technology and can identify the probes automatically. It also can use a video printer or laser printer and has a USB port for image saving to a flash disk and transferring to a PC. WED-380V has gained excellent reviews among the equine breeders in the USA, and sells very well all over the world.

Features

• 3 Scanning Modes: Convex/Linear/Micro-convex
• 2 Probe Connector
• Standard Configuration: 6.5 MHz Vet Rectal Probe

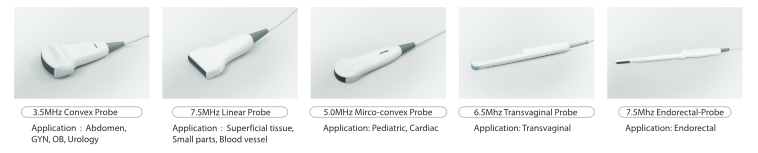

• Optional Probes: 3.5 MHz Convex Probe, 7.5 MHz Liner Probe, 5.0 MHz Micro-convex Probe, 6.5 MHz Vet Rectal Probe
• Monitor: 10.4 inches
• Cine-loop: ≥500 frames
• Image Permanent Storage: ≥64 frames
• Scanning Depth: 40-250 mm
• Scanning Angle: Visible and adjustable
• Display Mode: B, B+B, B+M, B+2M, M, 4B
• Gray scale: 256 levels
• TGC Adjustment: Total gain, 8-Segment TGC adjustment
• Image Multi-adjustment
• Body Mark: ≥16 types
