Advanced B&W Imaging Capabilities

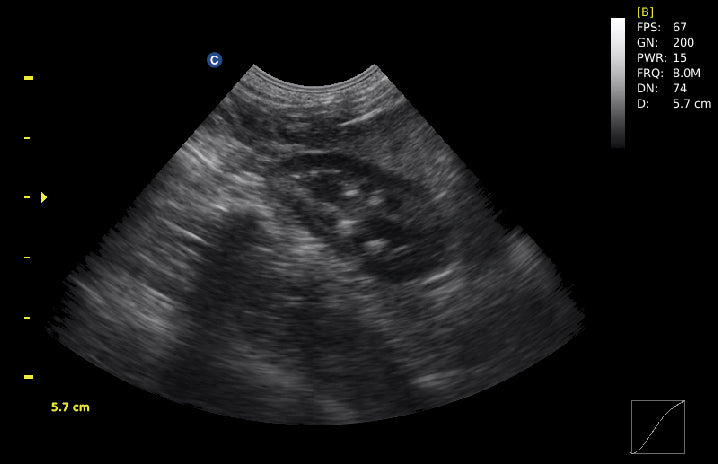

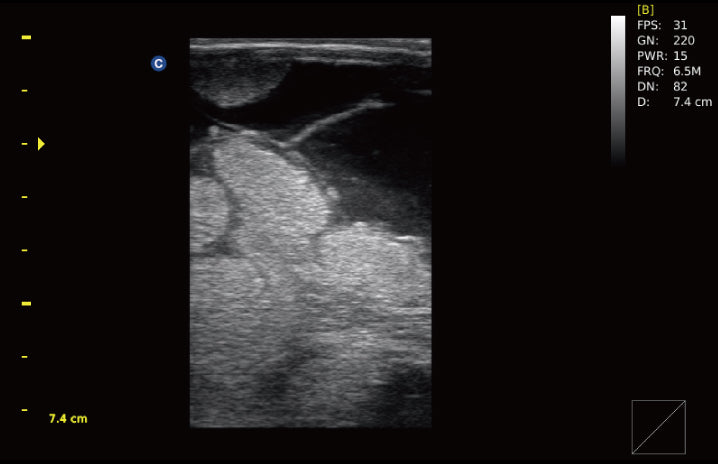

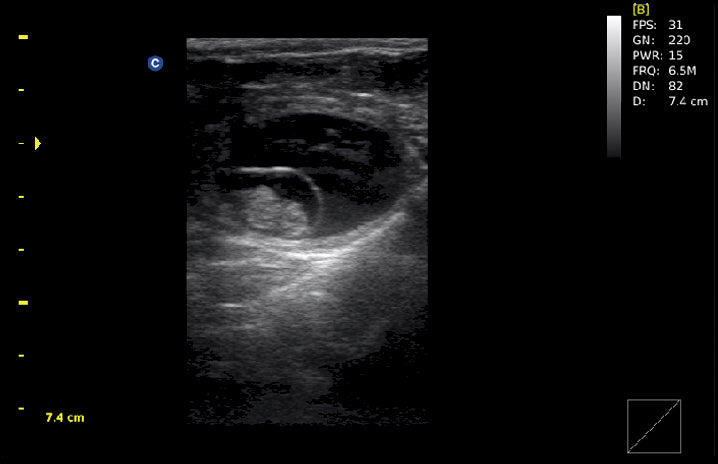

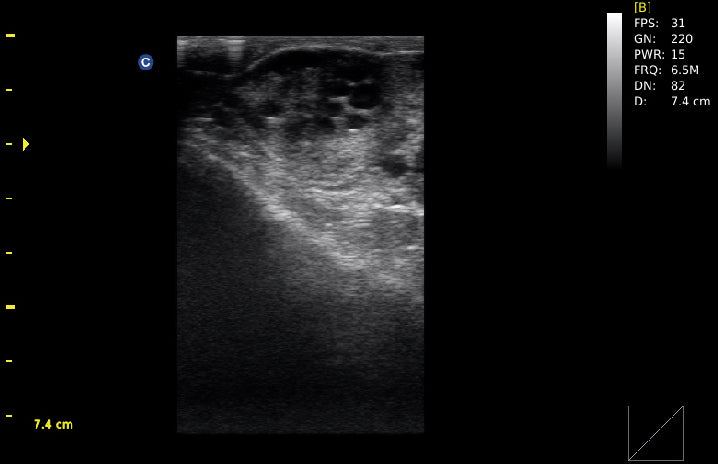

ECO1 Vet is lightweight and portable, convenient for field work. Provides fast and accurate diagnose due to high frequency of transducers (2.5-10MHz) that are available. Includes a veterinary rectal probe with 5.3-10MHz for follicle measurement and heat detection of cattle and mares for determining the best time for insemination. This rectal probe can also be used for early pregnancy detection and sex determination of the fetus. Besides reproduction, ECO1 Vet can be used in tendon examination for equine. In pets and other small animals, ECO1 Vet is good for abdomen, small parts, and basic cardiology.

ECO1 Vet has a streamlined workflow with real time image save, one key image save for still image and cine loop (most ultrasounds have complicated image save with many steps). Saved image and cine loop are right on the screen to make for easy browsing.  Images and cine loop can be sent to USB, and read on PC (most black and white ultrasounds can not read cine loop on PC).

Advantages

ECO1 Vet ultrasound when compared with other machines in the same price range is vastly superior. For example, when compared with the Edan DUS 60Vet, Mindray DP10Vet, DP20Vet, and DP30Vet, the ECO 1Vet has better features. The ability of the ECO1 Vet to support PC printing rather than video printing is a highly desirable feature in today's world. The ECO 1Vet produces more detailed reports with images.

The DUS 60Vet cannot include images in the reports, has a fixed screen, is much larger and heavier and the keyboard is not streamlined with one touch key options. The ECO1 also has larger memory of 4GB versus only 504MB in DUS 60Vet. The DUS 60Vet also has less battery life and cannot produce full screen images.

When compared with Mindray DP10 & DP20, the ECO1 Vet has a more technologically advanced yet simple working platform. Battery life is better at 2.5 hours versus only 2 hours with the DP10, 20, 30Vet models. ECO1 Vet also features full screen image ability with one key thus allowing for greater image detail. Some other advantages of the ECO1Vet: a larger cine memory, FDA approval, better linear rectal probe imaging, ability to switch from human to vet software, and better accessories at a more affordable price.

Features

• 12" rotatable LED monitor
• Cine loop: 256 frames
• Display modes: B, B/B, 4B, M, B/M
• 4 step zoom
• 3 USB ports, VGA port, Video port, LAN port
• One probe connector
• Available Probes:
• L7M-A:7.5MHz Linear array (5.3 MHz to 10.0MHz) for small animal and tendon in large animals
• MC6-A :6.0MHz Micro-Convex probe (4.5MHz to 8MHz) good for small animals: <15kg
• C3-A: 3.5MHz Convex (2.5MHz to 5.0MHz) For Abdomen, Large animal
• L7V-A: 7.5MHz Linear rectal (5.3MHz to 10.0MHz) Equine and bovine reproduction
