Chison Q6V
$ 11,999.00

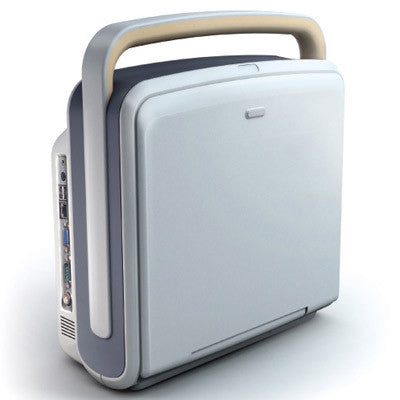

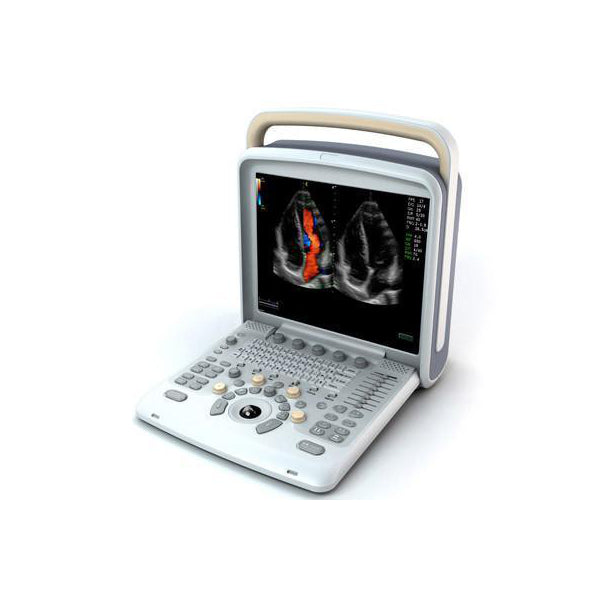

Compact HCU Color Veterinary Scanner
Chison Q6Vet is one of the highest quality compact HCU veterinary color dopplers available. Produces top image quality and its complete functionality can be used for all kinds of diagnosis. It has the same range as SonoScape S8, but Q6 is more affordable without sacrificing performance and quality. Being a lightweight compact machine, the Q6VET has proven to be very convenient for veterinarians when transporting and performing outdoor examinations. Other features include user-friendly operation with minimum soft key entry, ergonomic and modern keyboard design, 15" large LCD display, and double probe connectors. With the Chison Q6VET every scan is made easily and quickly, ensuring amazing results and increased workflow.
New Functions
- Speckle Reduction Algorithm (SRA) makes the image much clearer. SRA uses a variety of denoising algorithms to suppress speckle, smooth the B mode images, and make the faint edge more apparant.
- Multiple Compound Imaging (MCI) function increases the lines density producing higher image quality with better contrast and resolution. It will also decrease the sidewall effect of the edge on the tissue and make the edge of the anatomical structure more distinguishable.
- IMT Calculation will automatically trace the intima and automatically measure the thickness of the intima.
- Multi-Beam former processes one group of an echo signal which can greatly improve the speed of imaging processing and especially enhance CFM frame rate. Conventional color doppler ultrasound systems use single beamformer technology, thus using one beamformer to process one group of echo signal for imaging.

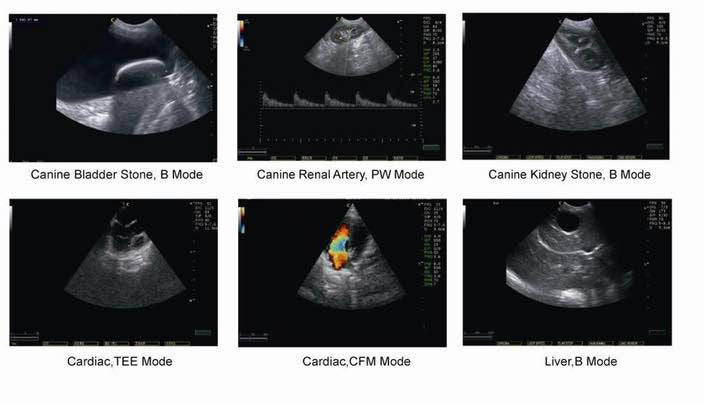

Imaging Modes
- B, 2B, 4B, B/M
- CFM, B/BC
- PW, HPRF, CW
- PD, Directional PD
- Instant Triplex, Duplex
- Trapezoidal
- Panoramic
- TSS
- Chroma B/M/PW/CW
- Free-hand 3D (optional)*
Probes
- Electronic Convex, Electronic Linear, Electronic Micro-Convex, Phased Array
- Wideband (broadband) Multi-frequency
Image Processing Technology
- Double Phase Digital Beam Forming(DPDBF)
- THI on all probes
- Speckle Reduction Algorithm(SRA)
- Multiple Compound Imaging(MCI)
- i-Image™(optional)
Measurement & Report Packages
- Canine: GS, GRL, HD, BD
- Feline: HD, BD
- Equine: GS
- Bovine: BPD, CRL, Trunk Diameter
- Ovine: BPD, CRL, Trunk Diameter
Professional Clinical Applications
- Cardiac use
- Abdominal examination
- Use in Vascular and Small parts
- Use in reproduction
Standard Configuration
- Main unit, 15"LCD, 2 probe connectors, large-capacity memory, 2 USB ports
- Video out, TV out,LAN port, VGA out

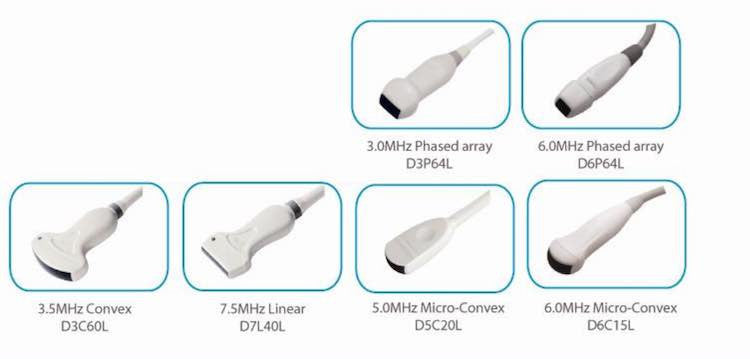

- Two probes by choice:
- 3.5MHz Convex
- 7.5MHz Linear array
- 6.0MHz Micro-convex
- 3.0MHz Phased Array
- 6.0MHz Phased Array
- 5.0MHz TEE probe
